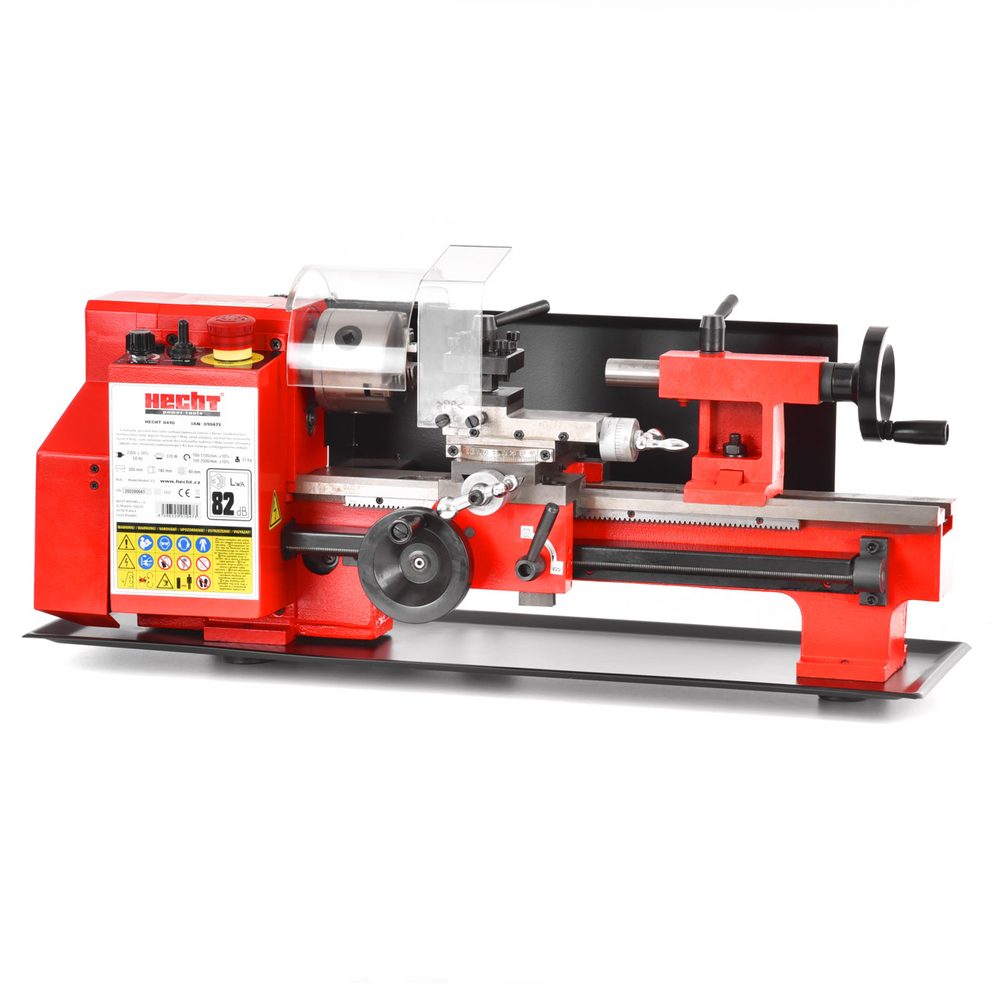

Electric mini lathe – HECHT 8410

Electric mini lathe – HECHT 8410

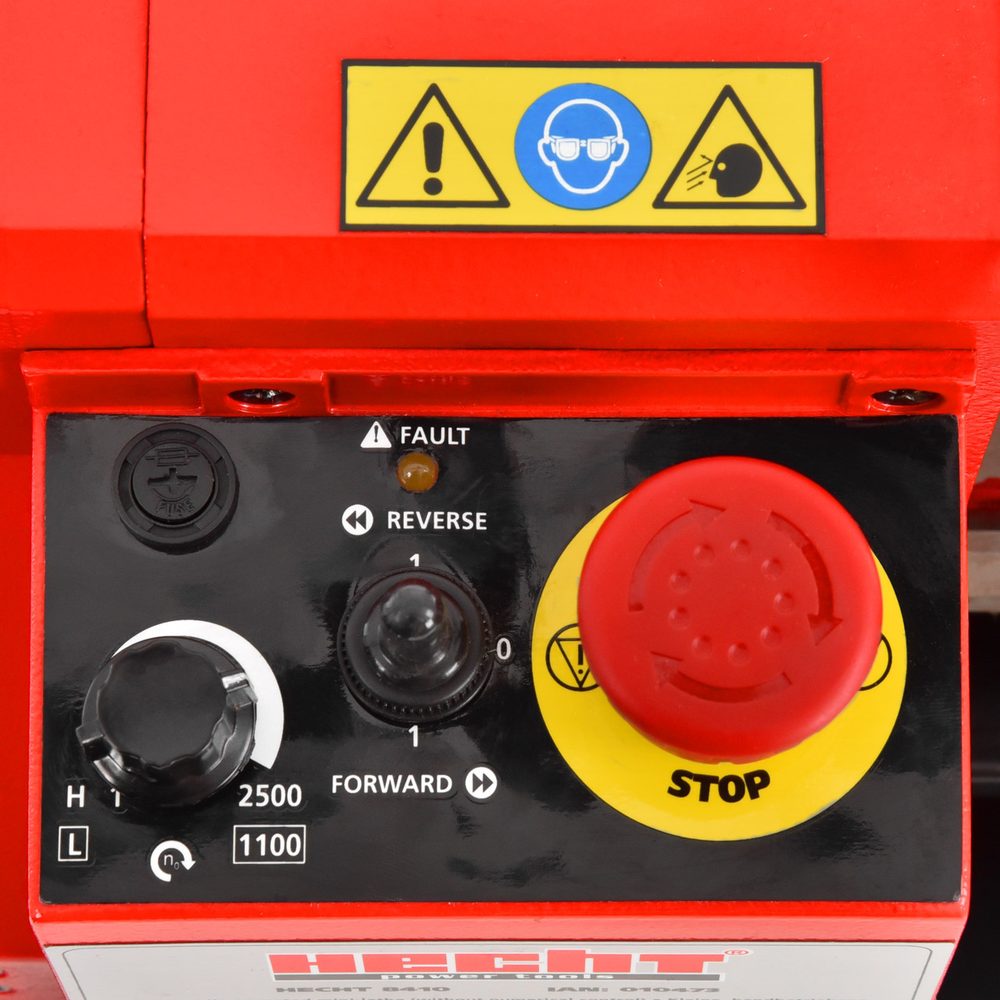

Small bench lathe designed for internal and external turning of workpieces up to 180 mm diameter and max. length 300 mm. The spindle speed can be continuously adjusted in the range of 100 – 1100 or 100 – 2500 rpm. /min. (depending on the set range). Cutting of metric threads 0,4 – 2 mm, cutting of inch threads 12 – 52 ch/”. The feed speed is selected by changing the gears. Smooth feed is ensured by precision ground sleds. Power supply from a standard socket 230 V / 50 Ht. Power input 370 W.
Also included…
